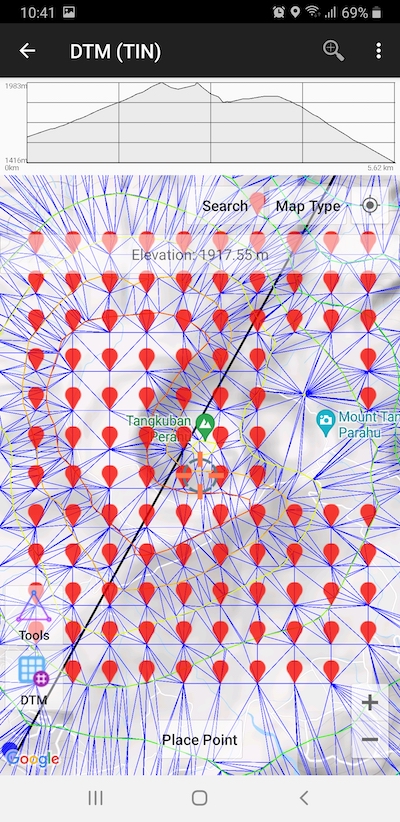

This tool allows you to generate dynamic section / elevation profile from surface (TIN) data. Part of DTM (TIN) module, the surface itself can be generated from contour data and / or random registered point data or imported point data from txt file.
You can see the process in the following video:
Save/Export Elevation Profile

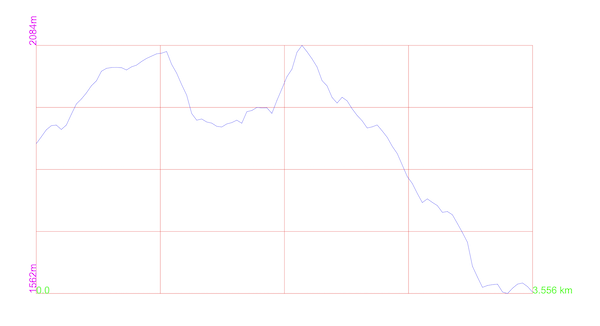

Now you can save/export your elevation profile into a DXF file to be opened in AutoCad or other software that supports it. Click on the Elevation Profile that you have created (on top of the Maps), select Save To DXF and enter the name of the DXF file that you want.
Module to use: DTM
Module Icon:
Steps: Open DTM (TIN) module > Click DTM button > Generate Surface > Click Tools button > Click Plot Section
Available on version 3.0.6 and above.
